Small centrifugal fans made of plastic from HLU

• Corrosion-resistant plastics for long-lasting operation
• Compact design, ideal for confined installation situations
• Various versions for different installation requirements
• Fast availability of standard variants

• Ideal for 24-hour exhaust air from chemical storage cabinets
• Reliable handling of air and corrosive gases
• Suitable for use in potentially explosive environments (Ex Zone 2 and Ex Zone 1)

• PPs-el: Impeller and housing made of corrosion-resistant plastic
• Motor options: Available with three-phase or single-phase motor
• ATEX option: Explosion-proof motors for Zone 1 and Zone 2
• Maintenance-friendly: Motor positioned outside the airflow
• Shaft seal: Standard equipment
• Connection options: Pipe or flange connection
• Accessories: Sleeve with tightening strap and vibration dampers

HF - Radial Fan with Direct Drive

The HF radial fan with direct drive is a corrosion-resistant plastic radial fan with a single-sided suction design. It features a housing made of electrically conductive and flame-retardant PPs-el, produced in an injection-molded and tightly welded construction. The fan is equipped with a sealing ring at the shaft passage and a grease barrier for the A-side motor bearing.

The impeller is made of electrically conductive PPs-el with backward-curved blades to reduce the load on the shaft passage. All components exposed to the exhaust air medium are made of plastic or are plastic-coated to ensure durability and resistance to corrosive environments.

The motor is completely separated from the airflow, providing overload protection across the entire performance range. The fan frame is constructed of powder-coated steel sheet, suitable for mounting on horizontal surfaces.

This robust design ensures reliable performance in demanding industrial and laboratory environments, offering both efficiency and safety.

HF - Radial Fan with Direct Drive

The HF radial fan with direct drive is a corrosion-resistant plastic radial fan with single-sided suction. The housing is made of electrically conductive and flame-retardant PPs-el, featuring an injection-molded and tightly welded design. The fan includes a sealing ring at the shaft passage and a grease barrier for the A-side motor bearing.

The impeller is constructed from electrically conductive PPs-el and features back vanes to reduce load on the shaft passage. All components exposed to the exhaust air medium are either made of plastic or fully encapsulated in plastic, ensuring maximum corrosion resistance.

The motor is isolated from the airflow and designed with full overload protection across the entire power range. The fan frame is made of powder-coated steel sheet, suitable for mounting on horizontal surfaces, providing durability and stability in a wide range of industrial and laboratory environments.

ATEX version
Zone 2 inside / no zone outside

• Housing and impeller
  made of electrically conductive and flame-retardant PPs-el
• Shaft seal
  for maximum operational safety and protection against leakage
• Optional protective grid
  on the suction and outlet sides for protection against foreign bodies

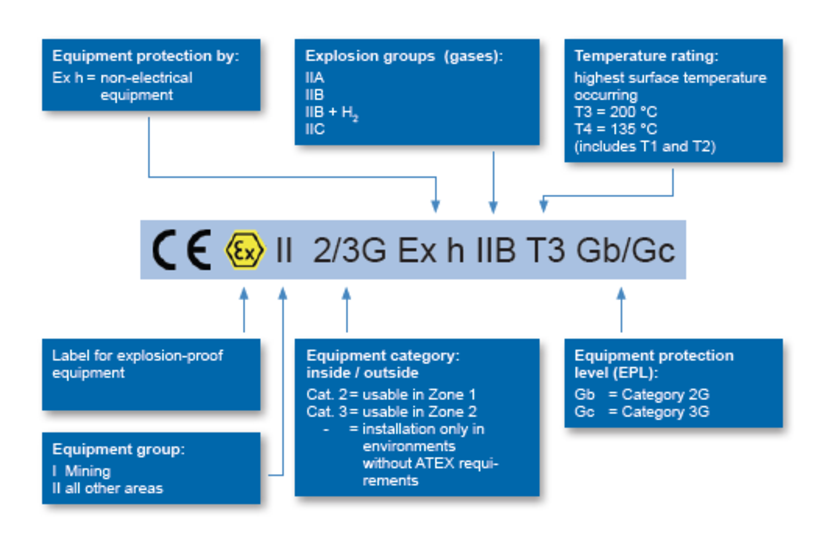

• Type label with Ex marking and documentation
  for easy identification and compliant use in zone 1 and 2

ATEX version
zone 2 inside / zone 2 outside

• Housing and impeller
  made of electrically conductive and flame-retardant PPs-el
• Shaft seal
  for maximum operational safety and protection against leakage
• Optional protective grid
  on the suction and outlet sides for protection against foreign bodies
• Motor for single-stage network operation
  II 2G Ex eb II T3 Gc
• Motor for inverter operation
  II 2G Ex db eb IIC T4 Gb with PTC
• Type label with Ex marking and documentation
  for easy identification and compliant use in zone 1 and 2

ATEX version
zone 1 inside / zone 2 outside or
zone 1 inside / zone 1 outside

• Housing and impeller
  made of electrically conductive and flame-retardant PPs-el
• Shaft seal
  for maximum operational safety and protection against leakage
• Optional protective grid
  on the suction and outlet sides for protection against foreign bodies
• Motor for single-stage network operation
  II 2G Ex eb II T3 Gc
• Motor for inverter operation
  II 2G Ex db eb IIC T4 Gb with PTC
• Type label with Ex marking and documentation
  for easy identification and compliant use in zone 1 and 2
