Fans with EC Drive

Centrifugal Fans and Roof Fans with EC Motor

HF R 15 / 17 EC and HF D 15 / 17 EC

Download Catalog centrifugal fans with EC-motor | EN

Download Catalog roof fans with EC-motor | EN

Maximum Energy Efficiency with EC Technology

Our plastic centrifugal fans with EC motors set new standards in ventilation technology. Thanks to advanced electronically commutated (EC) motors, they offer exceptional energy efficiency, lower operating costs, and a long service life. Unlike conventional motors, EC motors dynamically adjust their speed based on real-time demand, minimizing energy consumption—especially in industrial applications with variable airflow requirements.

Warum EC-Motoren?

EC motors combine the best of AC and DC technologies, offering seamless, stepless speed control with unmatched efficiency. Their intelligent regulation ensures that only the necessary amount of energy is used, delivering key benefits such as:

✔ Significantly lower energy consumption
✔ Extended motor lifespan
✔ Reduced noise levels
✔ Minimal maintenance requirements
✔ Seamless integration into modern control systems

Our EC-Fan Series

HF D - Roof Fans & HF R - Centrifugal Fans

Our EC centrifugal and roof fans are designed for demanding industrial applications, where energy efficiency, durability, and corrosion resistance are essential. Engineered for extreme conditions, they ensure reliable, long-term performance in harsh environments.

Advantages

Outstanding Energy Efficiency – EC technology significantly reduces energy costs
Long-Lasting Durability – High-quality materials and robust construction ensure extended service life
Simple Plug & Play Installation – Quick setup for fast operational readiness
Compact & Space-Saving Design – Ideal for installations with limited space
Stepless Speed Control – Enables precise airflow regulation for optimal performance
Compliant with ErP Directive – Meets all Ecodesign energy efficiency requirements

Application

Air & Gas Conveyance – Handles standard and corrosive airflows with ease
Explosion Protection – Certified for use in Ex-Zone 2 environments
High-Efficiency – Perfect for energy-conscious facilities
Retrofits & Upgrades – Excellent choice for system modernizations and optimizations

Design

High-quality materials: Housing made of corrosion-resistant plastic for a long service life
EC Motor Positioned Outside the Airflow – Enhances efficiency and longevity
Pre-Wired Speed Controller & Repair Switch – Simplifies handling and maintenance
Flexible Control Options – Compatible with analog control systems, operates on standard single-phase power

Where Are EC-Fans used?

Our EC fans are used in various sensitive and demanding areas.
They ensure optimum air conditions in the medical and hygiene sectors. Science and research benefit from the precise and efficient control of air flows to ensure optimum conditions for experiments and developments. In laboratories and research facilities, the controlled extraction of chemical vapours and harmful gases is essential to create safe working environments. Our plastic fans are also ideal for the chemical and pharmaceutical industries, where corrosive substances and demanding production processes require a reliable and robust ventilation solution.

Medical and Hygiene Sector

Science and
Research

Laboratory and Research Facilities

Chemical and Pharmaceutical Industry

Tender Text HLU / HF Plastic Fans with EC-motor

HF R ...-15 / 17 D EC

HF - Radialventilator mit Direktantrieb
Ausführung mit EC-Motor
erfüllt die Ökodesign-Richtlinie ErP

Korrosionsbeständiger Kunststoff-Radialventilator mit UV-geschütztem Gehäuse aus PEs, RAL 7036, in gesinterter Ausführung, einseitig saugend, Einlaufdüse mit Dichtung als Inspektionsöffnung, leicht demontierbar, Kondensatstutzen an tiefster Stelle des Gehäuses, Splitterschutz gemäß UVV als kunststoffbeschichtetes Drahtgeflecht.
Laufrad mit rückwärts gekrümmten Schaufeln, statisch und dynamisch ausgewuchtet, Auswuchtgüte mindestens G 6.3 (DIN ISO 21940-11), mit Taperlock-Buchse auf der Motorwelle befestigt.
Ventilatorgestell in kräftiger Stahlschweißkonstruktion in verzinkter Ausführung, mit Motortragplatte. Ventilatorgestell geeignet zur Aufnahme des Ventilatorgehäuses mit Laufrad und der Antriebseinheit. Antriebseinheit bestehend aus hocheffizientem EC-Motor und abschließbarem Reparaturschalter.

HF D ...-15 / 17 D EC

HF - Roof Fan
Version with EC Motor

Corrosion-resistant plastic roof radial fan with a robust, rotationally sintered housing, featuring single-sided suction. The fan is equipped with splinter protection according to accident prevention regulations, starting from size 160, using plastic-coated wire mesh.

When mounted vertically, the exhaust air is discharged vertically in compliance with the requirements for contaminated exhaust air. All components exposed to the exhaust air medium are made of plastic or are fully encapsulated in plastic.

The impeller features backward-curved blades in an injection-molded design, securely mounted on the motor shaft using a taper-lock bushing. The impeller is statically and dynamically balanced, achieving a balancing quality of at least G 6.3 (DIN ISO 21940-11).

Includes a highly efficient internal EC motor, encapsulated against the exhaust medium, and an externally mounted repair switch. The required external ventilation for the motor is provided through externally routed ducts.

Manufacturer	: Hürner Luft- und Umwelttechnik
Type	: HF R ...-.. D EC
Housing Material	: PEs
Impeller Material	: PPs
Housing Position	: GR
Inlet Diameter	: ...	mm
Medium	: Abluft
Volume Flow	: ...	m³/h
Total Pressure Difference	: ...	Pa
Static Pressure Difference	: ...	Pa
Sound Pressure Level Lp8A (1 m)	: ...	dB(A)

Motor Power	...	kW
Voltage	230	V
Frequency	50	Hz
Rated Current	...	A
Enclosure / Motor Protection	IP 55 / im Motor integriert

Manufacturer	: Hürner Luft- und Umwelttechnik
Type	: HF D ...-.. D EC
Housing Material	: PEs
Impeller Material	: PPs
Installation Position	: Vertikal
Inlet Diameter	: ...	mm
Medium	: Abluft
Volume Flow	: ...	m³/h
Total Pressure Difference	: ...	Pa
Static Pressure Difference	: ...	Pa
Sound Pressure Level Lp8A (1 m)	: ...	dB(A)

Motor Power	...	kW
Voltage	1~ 230	V
Frequency	50	Hz
Rated Current	...	A
Enclosure / Motor Protection	IP 55 / im Motor integriert

Accessories for each fan:

1 piece potentiometer IP67, fitted, wired, with adjusting scale 1 - 10 for steplessly speed setting, factory-set to the
operating point
1 piece repair switch IP66, fitted, wired, with two auxiliary contacts (1x NO, 1x NC)
1 set sleeve and vibration dampers made of rubber

Accessories for each fan:

1 x potentiometer IP66, mounted, wired, with adjustment scale 1 - 10 for infinitely variable speed
adjustment, preset to operating point at the factory

Housing and impeller made of corrosion-resistant plastic

Flame-retardant Polyethylene | PEs

✓ Good resistance to inorganic acids
✓ High UV resistance
✓ Good low-temperature toughness
✓ Affordable price

Standard material for sintered housings

Flame-retardant Polypropylene | PPs

✓ Good resistance to inorganic acids
✓ Good mechanical strength
✓ Affordable price

Standard material for impellers made of thermoplastic

EC-Fans in ATEX design

Explosion protection according to ATEX 2014/34/EU

The ATEX Directive 2014/34/EU regulates explosion protection for products that are operated in hazardous areas.

Our explosion-protected EC fans fulfil the requirements of ATEX Directive 2014/34/EU and offer maximum safety in zone 2 indoors, no zone outdoors.

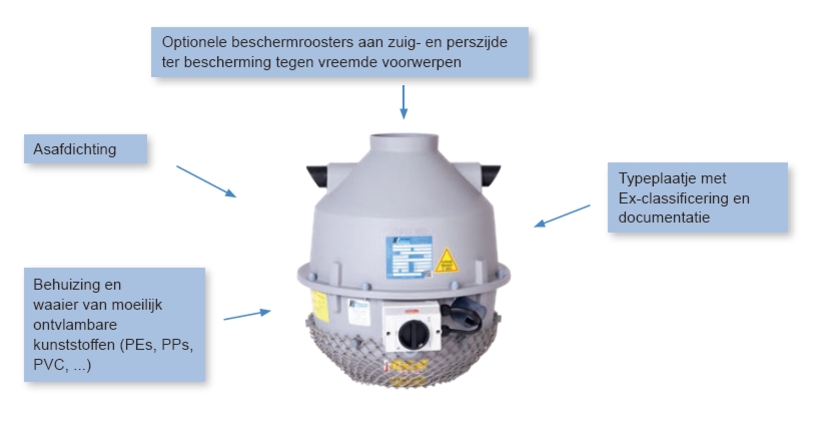

ATEX version
Zone 2 inside / no zone outside

Housing and impeller
made of flame-retardant plastics
Shaft seal
for maximum operational safety and protection against leakage
Optional protective grid
on the suction and outlet sides for protection against foreign bodies

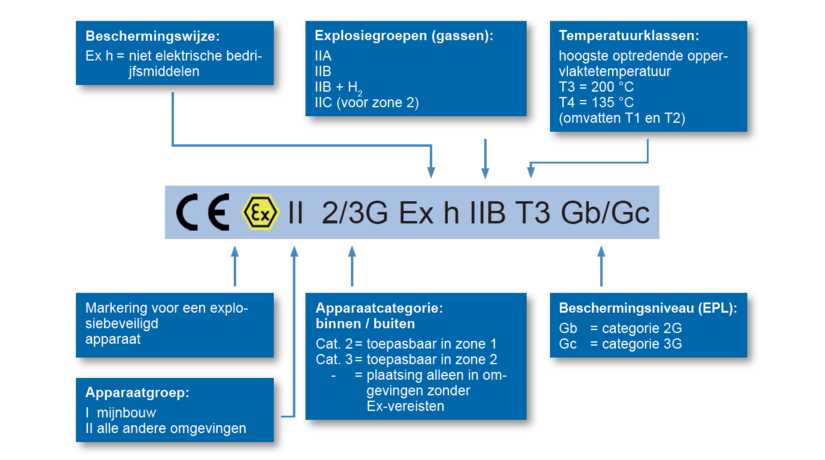

Type label with Ex marking and documentation
for easy identification and compliant use
